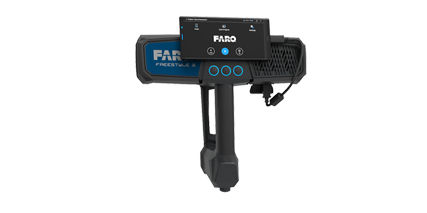

FARO FREESTYLE 2

Fast – Easy – Photorealistic 3D Data Capture for Public Safety

The Freestyle 2 is a high-quality portable 3D scanner designed for fast, photorealistic 3D reality capture. With its ultra-responsive real-time display, on-site review has never been easier or more intuitive. Freestyle 2 is a lightweight handheld device with a high degree of flexibility, allowing operators to scan anywhere in most conditions.

The FARO^® Freestyle 2 is a superior handheld 3D scanner designed for investigators and reconstructionists who require quick and easy complete scene documentation. Delivering fast, photorealistic 3D reality capture with unparalleled real-time display results, Freestyle 2 offers total mobility to scan even the most confined spaces and difficult objects

Ultimate Flexibility

Freestyle 2 is portable, without the need for bulky computers
Self-contained unit gives the freedom to scan around objects or inside spaces

Save Time

Scan scenes and objects without data voids in minutes
Captures data easily and in more detail in less time

Photorealistic Results

Get high-quality, colored, 3D data with up to 0.5mm accuracy

Confidence in What you Capture

See a display of data as you capture to ensure you are getting what you need

Easy-to-learn & Easy-to-Use

Modern user interface, proprietary tracking algorithms, integrated video tutorials

Real-Time Visualization

Display lets you view what you capture as you scan

Wide-Range of Scanning Distances

Captured 3D Points starts at 0.4m
Can be set to a maximum of 10m

Capture in Variety of Lighting Conditions

Designed for normally illuminated interiors and outdoors, including in overcast conditions
Even provides usable data in complete darkness One-Hand Operation
Lightweight with no bulky tablet or long cables

Guided Scanning

Haptic feedback alerts operator when adjustments need to be made to the users scanning technique
Proprietary tracking engine enables users to make natural movements while scanning

On-Site Compensation

White-balancing, post-processing can be done at the scene
No annual calibration required Integrated Training
Live display of data quality with integrated training videos, and tutorials

Technical Parameters
Ranging	0.4-5 m (up to 10 m in the case of limited data quality)
Recognizable function	0.2 mm long
3D point accuracy 1	≤0.5 mm
3D point accuracy 2	距离 1 m 时，精度为 0.5 mm 距离 5 m 时，精度为 5 mm 距离 10 m 时，精度为 15 mm
Single pixel density	Up to 45,000 points/m2 at a distance of 0.5 m Up to 10,500 points/m2 at a distance of 1 m
Acquisition speed 3	Up to 220,000 points/sec, point cloud density increases with time
Standard noise 4	• 0.3 mm (at a distance of 0.4 m) • 0.75 mm (at a distance of 1 m) • 10 mm (at a distance of 3 m) • 35 mm (at a distance of 5 m) • 100 mm (at a distance of 10 m)
Lighting conditions	Full daylight 10,000-45,000 lux (performance is reduced under direct sunlight)
Light source	Integrated LED flash
Scan range	39.5 m³ at maximum distance of 5 m
Standard field of view (height x width)	• 420 mm x 550 mm @ 0.5 m • 930 mm x 1170 mm @ 1 m • 1800 mm x 2160 mm @ 2 m • 2740 mm x 3160 mm @ 3 m • 3600 mm x 4160 mm @ 4 m • 4470 mm x 5150 mm @ 5 m
Exposure time	0.1 ms - 7 ms（自动曝光）
Texture color	24 位
Size	285 mm x 256 mm x 130 mm
Connectivity	HDMI、USB 3.0、WiFi
Weight	1.48 kg
IP protection level	IP 52
make up	On-site-with included compensation plate
range of working temperature	0 to 40°C
Working humidity range	No condensation
Eye safety	Class 1 laser
Wavelength	798 - 816 nm
