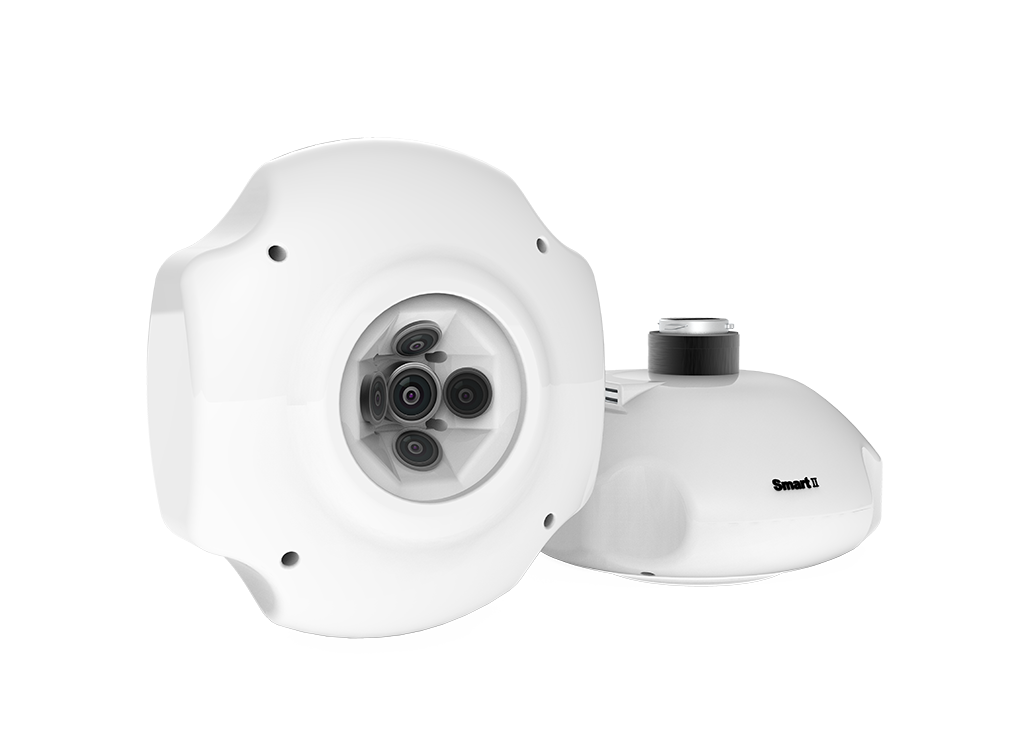

MS-Smart2
Summary Parameters Video Download
MS-Smart2
The new tilt camera developed with new design concept supports image-free operation, stable performance and good use experience

New features and new changes


New composite process body shell

Third generation lens set

A new generation of image processors


More reliable hardware
Multi-model compatibility
High-speed data export



New and upgraded image sensor is used to make the image quality more delicate and color restoration more accurate

Compared with the previous generation, the connection point of empty three calculation is up to 40% higher, and the model accuracy is further improved

At the same time, the supported camera frequency has been increased to 0.2 seconds







Lens optical optimization





Equipped with a third generation lens

Lower dispersion lens sets and UV filters

Higher lens consistency and distortion - free design

Factory after internal and external field double calibration




25-35mm lens set gold configuration



25 medium view 35mm side-view lens group configuration, can ensure nearly 100% coverage of ground imaging, and at any altitude in the forward camera and tilt camera data acquisition resolution is consistent, to avoid a single route collection blind area/different data acquisition resolution.



Support the xinjiang TimeSync | | high accuracy zero as time synchronization control technology




TimeSync is a continuous synchronous flight control, camera, GPS module, RTK module, DJI load and on-board accessories clock system built by DJI DJI innovation.


This enables Smart2 compatible with the DJI PayloadSDK ecosystem to communicate with the DJI flight platform in real time for clock signal synchronization.



At the same time, the high-precision positioning information of airborne RTK can be captured independently at the moment of taking pictures with cameras in all directions.


The time error is less than 1ms, and the comprehensive actual positioning error is 0.8cm.

So that image-free field acquisition can be realized.

Meet the large range of tilt photography high-precision acquisition operations.



Free like | pos unit independent control and offset correction




Smart-2 can be additionally configured with a separate POS recording module


Complete POS information recording without being affected by flight platform performance




Airframe design with low wind resistance


The drag coefficient is particularly important for the endurance performance of the rotary-wing UAV platform

Smart2 in the fixed wing and other internal cabin installation flight platform installation conditions while

Drag factor considerations are incorporated into the shell design

The overall shape is streamlined, with a smooth housing and large leading edge radius

It can reduce the differential pressure resistance of the UAV when the external equipment flies, and provide longer endurance



Lighter | a little bit small




A more refined figure

It can be paired with a smaller flying platform

Built-in exquisite structure

Achieve more extreme lightness







Greater environmental adaptability






The optimized design of SMART2 products provides lower operating calorific output


Can avoid the complex active air cooling cooling and solve the problem of waterproof and dustproof.


- Adapt to a wider range of operating environments





Rich accessories are more possible



PSDK high precision positioning module

Load damping assembly

Mount the shock absorber assembly

PAUM module

Data export Hub module

External PPK module

And so on..



PSDK high precision positioning module



Mount the shock absorber assembly



Load damping assembly


PAUM module


More extension accessories are continuously updated...…



Pluggable high-speed data transmission mode


Smart-2 is the way to copy and export data from the previous independent HUB module

To use high-performance solid-state detachable storage modules, support rapid reloading, two storage modules can achieve uninterrupted flight acquisition, without waiting for data export.


- Supports high-speed data transmission up to 200Mb /S







MS CCS Pro uses 3D engine data preprocessing software





MS CCS Pro is for MS-Smart tilt camera matching for corresponding data export

And the pre-processing software of the late data processing,

It can realize the whole process from image processing to XML configuration file generation of reconstruction software.




Save 90% of data collation time



After completion of the field operation, data can be automatically exported according to sorties and camera direction without manual intervention; It supports POS information of various formats for photo matching, and then automatically eliminates the useless aerial photos, directly generates block files, and directly imports them into the later software to start reconstruction. (Save 90% of manual operation time between field data processing and internal processing)



MS-SMART2 technical parameters

Mechanical dimensions

167-148-86mm

Lens group focal length

25-35mm或全35mm

Lens placement Angle

45°

The lens number

5

Minimum Photo Interval

0.2s

Working temperature

-20-55℃

Form a complete set of software

MS CCS PRO

DJI Skyport interface

support

Data export speed

200MB/S

Trigger signal

电平、PWM

Working voltage

12-36V

HDMI output

support

Mechanical dimensions

167-148-86mm

Lens group focal length

25-35mm或全35mm

Lens placement Angle

45°

The lens number

5

Minimum Photo Interval

0.2s

Working temperature

-20-55℃

Form a complete set of software

MS CCS PRO

DJI Skyport interface

Data export speed


200MB/S

Five-way independent POS

support

Image free operation (1:500)

support

Camera working status feedback

support

DJI figure

support


Smart2 PSDK technical parameters

The weight of the

580g

Effective pixels

120 million

Sensor size

APS-C

Photo size

6000x4000Pix

Storage capacity

640G(may be added)

Protection grade

IP54

Boot self-inspection

yes

The working state of five-channel camera

Real-time display

Working voltage

12-36v

The feedback signal

Support five independent feedback

The power consumption of the largest

30W

Modular design

yes

The weight of the

610g

Effective pixels

120 million

Sensor size

APS-C

Photo size

6000x4000Pix

Storage capacity

640GB(may be added)

Protection grade

IP54

Boot self-inspection

yes

The working state of five-channel camera

Real-time display

Exposure time synchronization

support

POS storage mode

This machine is stored

Five way photo APP display

support

The M300 has a range

about 45min

Orthophony lens support
