GoSLAM RS100
Summary Parameters Video Download
GoSLAM RS100
a new way to measure mobile

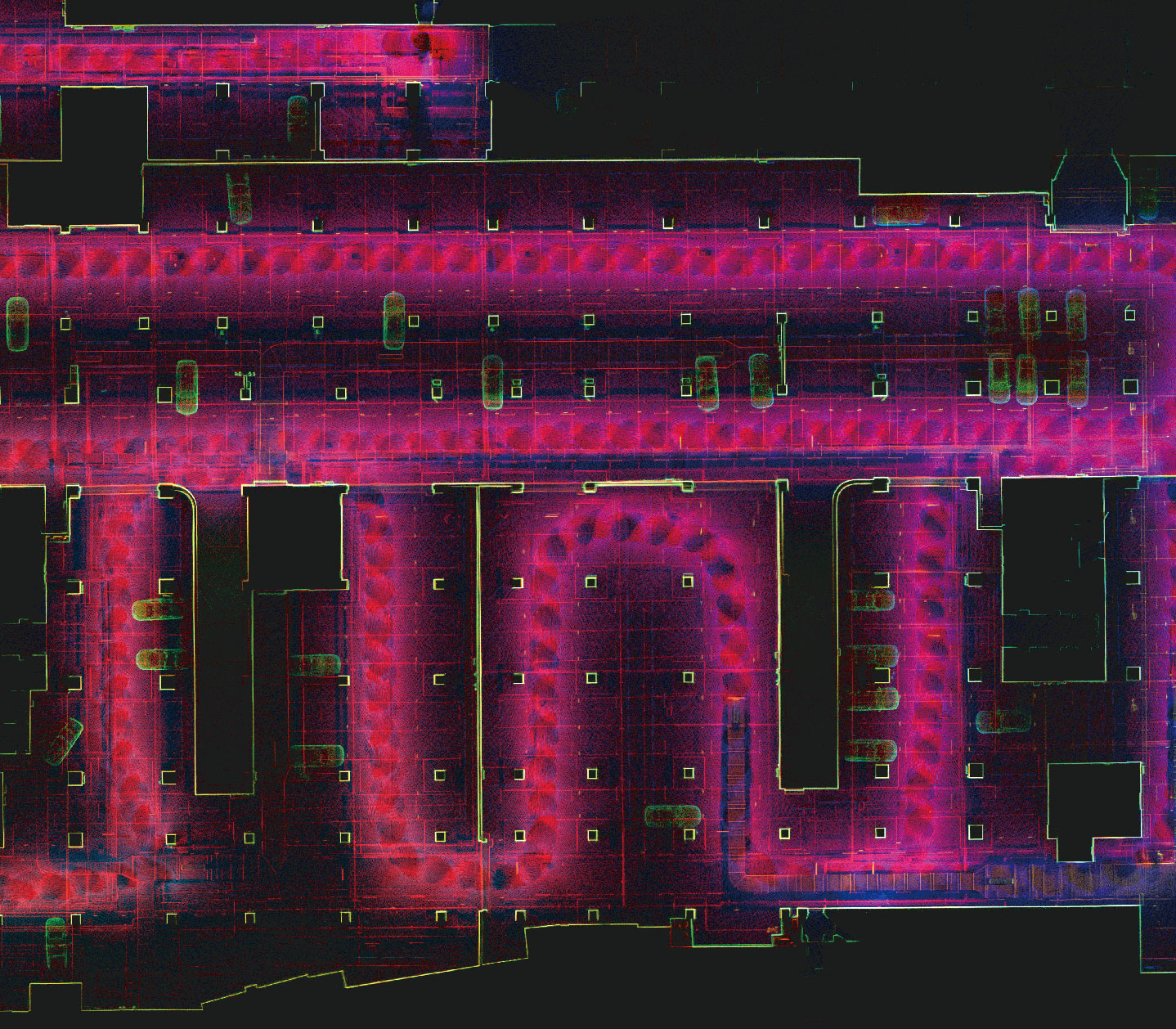

GoSLAM mobile measurement system adopts SLAM technology (simultaneous localization and mapping), that is, real-time positioning and mapping technology, does not rely on GNSS positioning such as GPS, and carries out its own positioning and incremental three-dimensional mapping in the movement of unknown environments such as indoor and outdoor space. GoSLAM is committed to providing customers with mobile 3D laser measurement system product solutions with better user experience.


GoSLAM mobile measurement system adopts SLAM technology (simultaneous localization and mapping), that is, real-time positioning and mapping technology, does not rely on GNSS positioning such as GPS, and carries out its own positioning and incremental three-dimensional mapping in the movement of unknown environments such as indoor and outdoor space. GoSLAM is committed to providing customers with mobile 3D laser measurement system product solutions with better user experience.



mixed solutions

 export ready to use multiple solutions are available to ensure that the data is error-free high protection, multi-platform installation long distance, high frequency

powerful performance

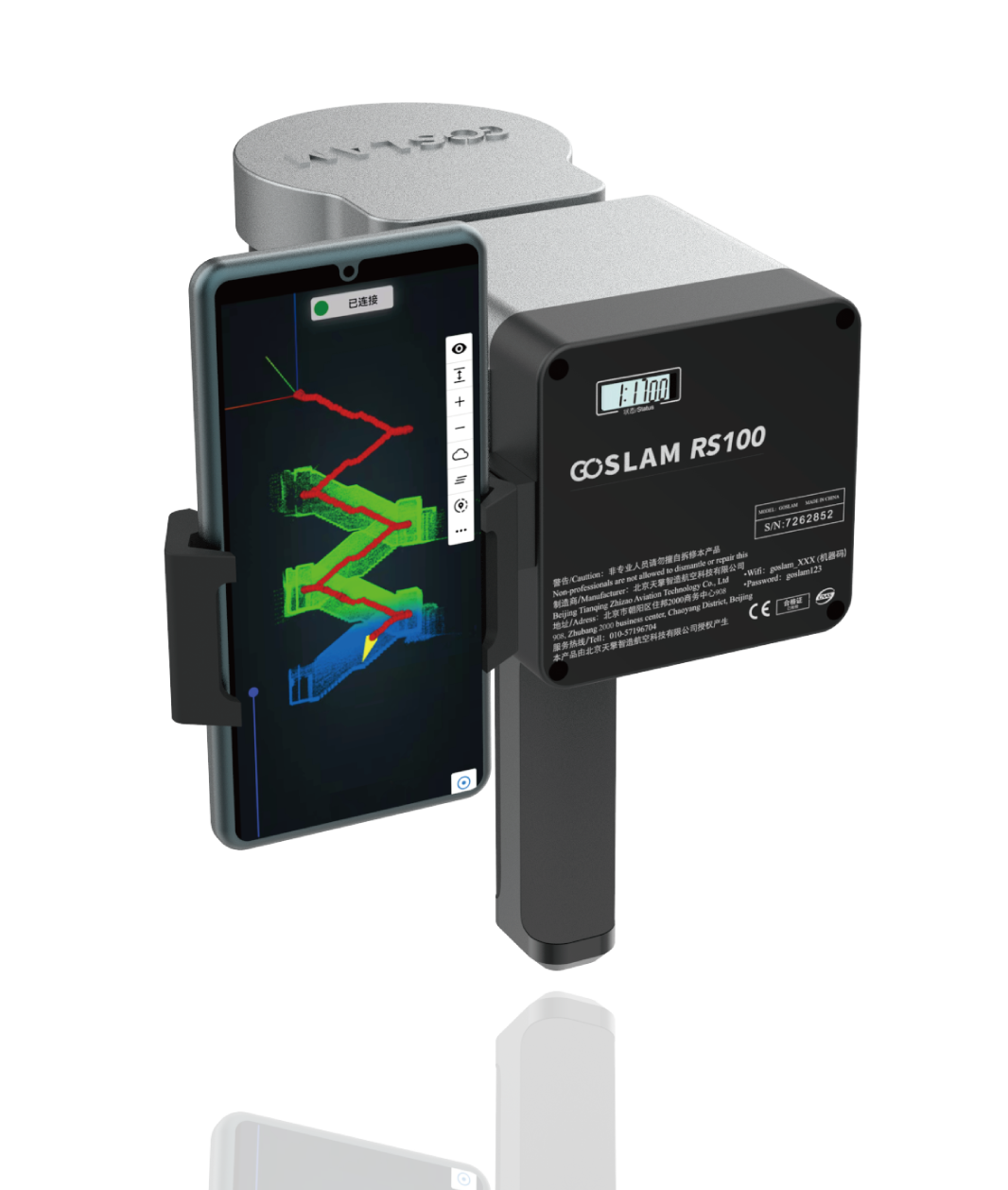

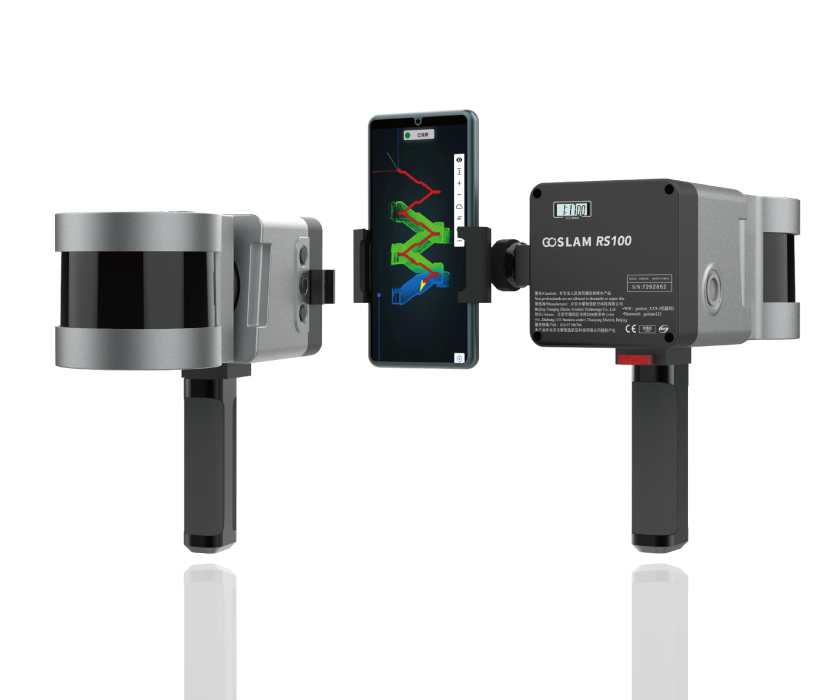

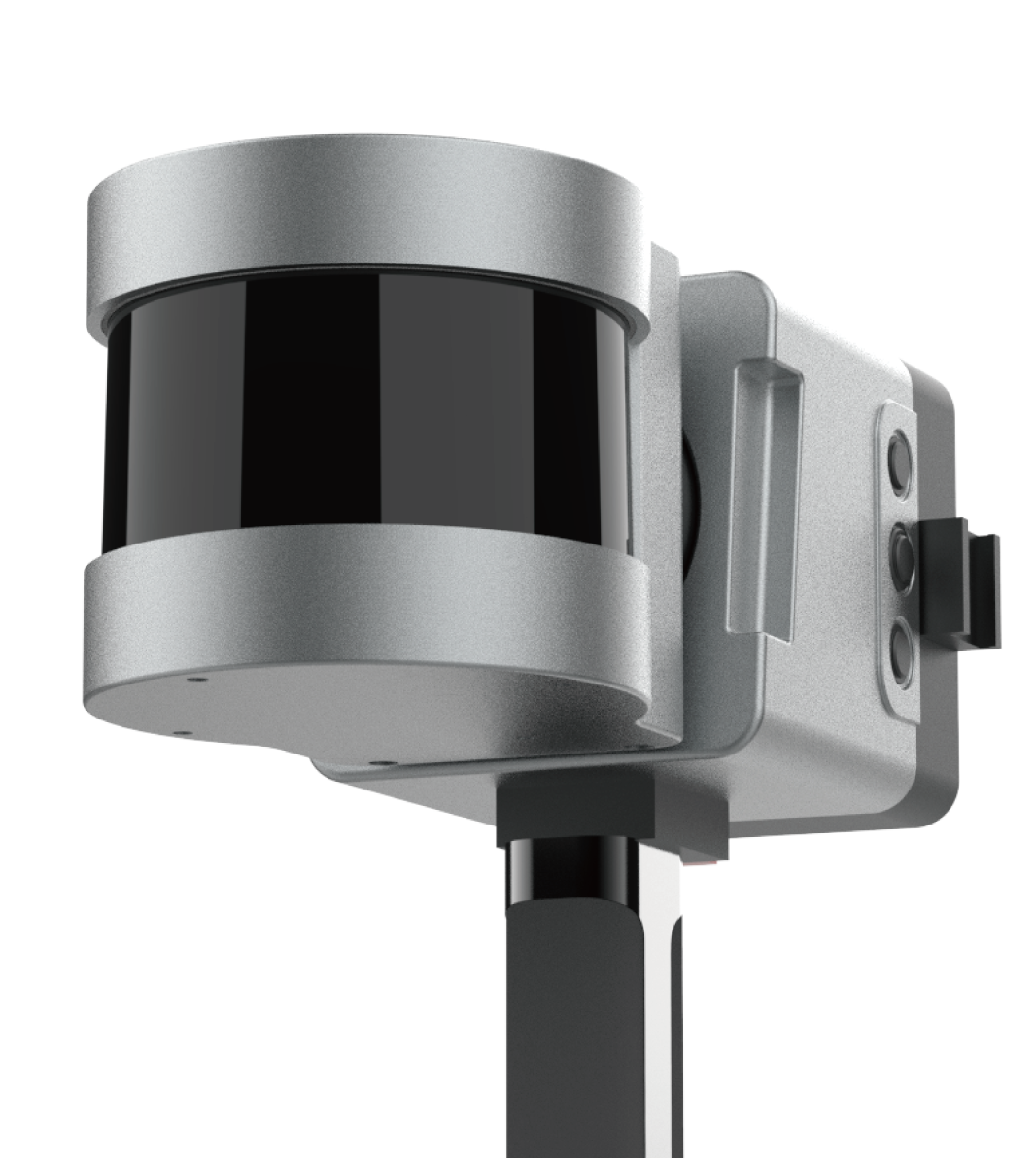

RS100 mobile measuring system equipped with rotating laser probe, 120 m range, 650,000 points per second acquisition capability with 360 ° × 285 ° wide viewing angle, relative point accuracy 1 cm (with low reflectivity range extended range mode)


hybrid solving techniques
RS100 has a unique hybrid solving technology to ensure higher accuracy, improve its own solving speed, and greatly improve scanning efficiency




ultra-weather resistant and multi-platform support

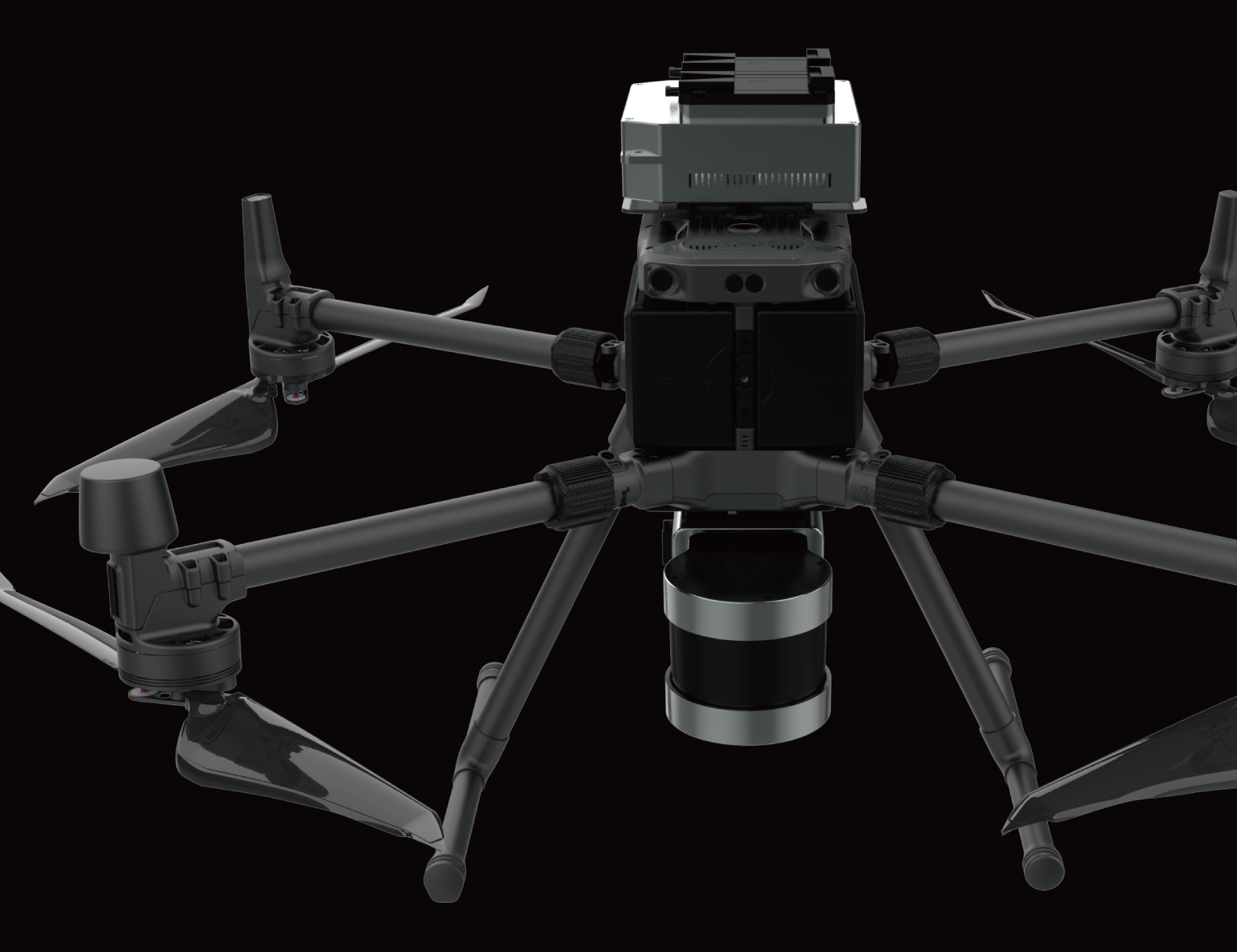

the rs100 system is extremely weather-resistant, can operate in a -30-60°c environment, and is compatible with backpacks, drones, vehicles and other mobile platforms

scan distance:120m

scanning speed:650,000 points/sec

point precision:1cm (maximum)

scan range:360°x 285°

number of laser lines:32 lines

number of laser heads:1

how it is solved:mixed solution

mode of operation:PHYSICAL KEYS + MOBILE APP

working status:LED STATUS SCREEN

built-in ssd:500G SCALABLE

protection class:IP54

operating temperature:-30°~-60°C

weight:1.5KG(HANDHELD)

laser rating:level 1 eye safety
