Artec Leo
Summary Parameters Video Download

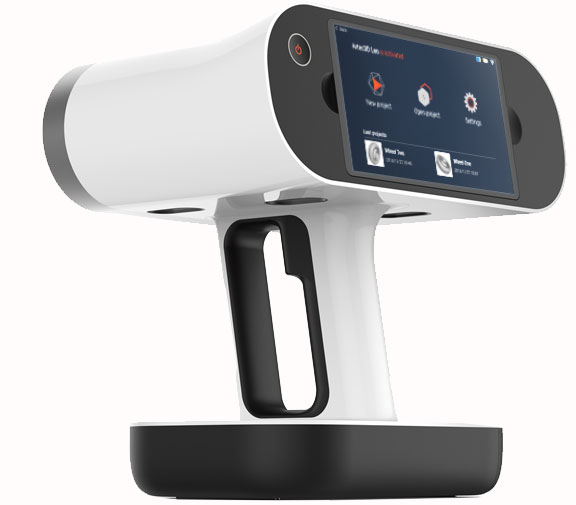

Artec Leo
The first 3D scanner to offer onboard automatic processing, Artec Leo is able to provide the most intuitive workflow, making 3D scanning as easy as taking a video. As you scan your object, see the 3D replica being built in real time on Leo’s touch panel screen. Rotate the 3D model, check if you have captured all areas, and fill in any parts you may have missed.

Breakthrough 3D scanning speed

The 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Furthermore, with its large field of view, Artec Leo can 3D scan and process even large objects and scenes fast and accurately. And for even greater precision, users can point the scanner closer to the object to pick up intricate detail, just as they would zoom in with a video camera.

A fully mobile scanning experience

Thanks to the powerful embedded processor and the inbuilt battery, Artec Leo gives you true freedom in 3D scanning. With no need to connect to a computer or to plug into a mains power source, you can hold Leo in one hand and walk around freely, scanning your object unhampered by any wires or additional equipment. Purchase supplementary battery modules for unlimited 3D scanning on expeditions or in remote areas with no power supply

Designed for usability

With a built-in battery, touch panel screen and wireless connectivity, Artec Leo takes handheld 3D scanning to the next level. Have complete freedom of movement when you scan, stream to a second device, if an additional display is needed, and upload your data at the touch of a button. Add to these features a carefully balanced, ergonomic design, devised to make 3D scanning in one hand easy and comfortable, and you have a next-generation professional 3D scanner, built with usability in mind.


The smartest 3D scanner on the market

Artec Leo contains state-of-the-art technologies, including the NVIDIA® Jetson™ platform, which is the scanner’s own internal computer, featuring Quad-core ARM® Cortex®-A57 MPCore CPU and NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores; a built-in 9 DoF inertial system — accelerometer, gyro and compass — which allows the scanner to understand its position and environment; and a two-in-one optical system designed to spec for the most exact texture to geometry mapping.


Applications

Since the user is able to capture both expansive areas and fine detail, Artec Leo can scan a wide range of objects, from small mechanical parts to the human body, cars, boats or crime scenes. As with all Artec 3D scanners, the applications are wide and far-reaching, including industrial manufacture and quality control, healthcare, forensics, VR and e-commerce. Furthermore, Artec Leo’s new wireless functionality and internal processor allow for a wealth of integration possibilities, making it even easier to streamline your application, regardless of the industry.







3D scanning and processing of large objects faster

Artec Leo has a wider field of view,

Capable of capturing massive amounts of data in the shortest time.



Capture smaller details

Quickly scan large areas,

Zoom in on the details to improve accuracy.


The most portable 3D scanner available today

Artec Leo with built-in battery and Wi-Fi connection

Gives you a completely free 3D scanning experience.

Feel free to move around the object without being bound by any cables!



Built-in touch screen panel and simple interface

See the 3D model creation process directly on the scanner.

View your model, change settings or use some simple tools on a simple touch screen

interface.Connect wirelessly to another screen for easy scanning or multi-person

collaboration.


Built-in 9 DOF inertial system

Built-in accelerometer, gyroscope and compass make Artec Leo unique

A handheld 3D scanner capable of accurately positioning itself,

It also recognizes horizontal and vertical surfaces, such as floors and walls.


Built-in SSD driver

SSD drive capacity is 256GB. Unlimited capacity

Micro SD memory card expansion. Suitable for outdoor 3D scanning!


Unlimited integration possible

The upper part of the scanner can be connected to a robot arm or transfer system

To complete an automated 3D scan or sync with multiple devices

And used in a variety of 3D scanner devices.



Unrivaled texture to geometry mapping

With a unique optical system developed by Artec 3D,

Its lenses use a synthetic 3D camera and a color camera.

Can achieve the highest level of texture to geometry mapping on any 3D scanner.


Large professional-grade lens system

Collect a large amount of data with full perspective and high accuracy to

generate the most accurate 3D model.


More powerful color capture

Artec Leo uses red VCSEL structured light, disruptive 3D sensing technology,

Digital work on hard-to-scan textures, including skin, and

Can scan objects under strong light. This technology also allows you to

adjust the flash intensity to further improve color capture.


Non-reflective scanning

Automatic reflective removal function uses advanced PBR algorithm to

delete scans Reflective area in. Easily save you hours.


No target required

Like all Artec full-powered 3D scanners, Leo uses powerful hybrid geometry and texture tracking,

You can start scanning immediately after aiming at the object.

No need to target on objects (remove them again!)



3D HDR

Scan difficult objects in HDR mode.

Textures that are often difficult to achieve with 3D scanners

such as black or shiny are perfectly captured.




Artec官网:https://www.artec3d.com


Working distance

0.35 – 1.2 m

Volume capture zone

173 000 cm3

Linear eld of view, H × W @ closest range

246 × 153 mm

Linear eld of view, H × W @ furthest range

843 × 527 mm

Angular eld of view, H × W

38.5 × 23°

3D resolution, up to

0.25 mm

3D point accuracy, up to

0.1 mm

3D accuracy over distance, up to

0.03 % over 100 cm

Ability to capture texture

Yes

Texture resolution

2.3 mp

Colors

24 bpp

3D reconstruction rate, up to

80 fps

Data acquisition speed, up to

4 million points/s

3D exposure time

0.0002 s

2D exposure time

0.0002 s

3D light source

VCSEL

2D light source

White 12 LED array
