Quantum Max FaroArm

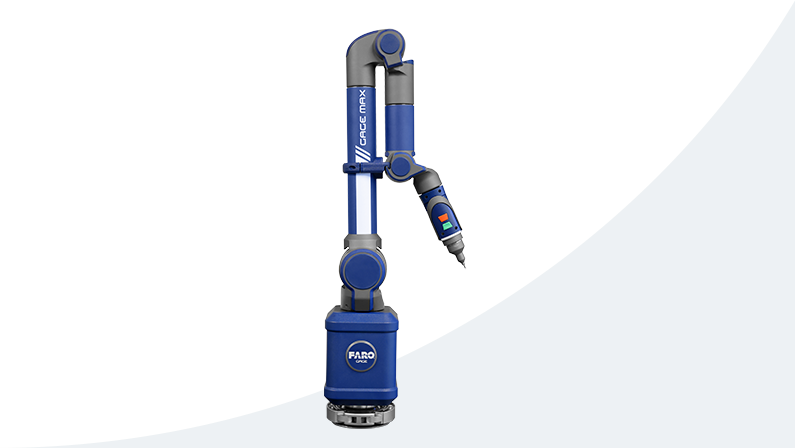

Quantum Max FaroArm, which is a portable coordinate measuring machine (CMM). The aviation, machining, assembly and automotive industries all rely on FaroArm portable coordinate measuring machines to easily capture accurate measurements in the shop, on site and even in poor environments.



FaroArm function


Multiple work scopes


The 2.5-meter, 3-meter, 3.5-meter and 4-meter ranges can meet the needs of any application.


Two different installation options


Improved speed and portability of operation with a motion mount, allowing for seamless and easy interchange of probes


Built-in balancing system


One-handed operation, will not feel tired.


Human engineering design


Easily transport, set up, and operate FaroArm.


The FARO Quantum Max features 8-axis integration


Quickly measure each face of the component without the need to reposition the component.


compliance


Meet the stringent performance standards of ISO 10360-12.


Universal quick installation


FaroArm can be set up anywhere if needed.


Temperature and overload sensors


Ensure continuous improvement in performance.


Powerful software solutions


Easy integration with FaroArm and software.


Optional batteries for longer working hours


Operate without any cables.


High speed wireless operation


Connect to Bluetooth or Wi-Fi.


Rugged and durable design


FaroArms can be used even in challenging measurement environments.



3D measurement application


Improve quality control and inspection


Verify dimensional accuracy and identify deviations from theoretical CAD data during first-part, in-process and incoming part testing.


Production, manufacture and assembly


Keep the production equipment calibrated and adjusted, verify the dimensional accuracy of tooling and parts.


Faster and more accurate product design and product engineering


Accelerate reverse engineering and rapid prototyping processes to reduce time to market.

FaroArm Precision - Contact Measurement * (7 axis)

QuantumS Max

7axis SPAT1 PSIZE2 PFORM3 LDIA4 EUNI5
2.0 米(6.6 英尺) 0.018 毫米
0.0007 英寸
0.01 毫米
0.0004 英寸
0.02 毫米
0.0008 英寸
0.04 毫米
0.0016 英寸
0.025 毫米
0.001 英寸
2.5 米(8.2 英尺) 0.02 毫米
0.0008 英寸
0.011 毫米
0.0004 英寸
0.022 毫米
0.0009 英寸
0.044 毫米
0.0017 英寸
0.028 毫米
0.0011 英寸
3.0 米(9.8 英尺) 0.032 毫米
0.0013 英寸
0.016 毫米
0.0006 英寸
0.032 毫米
0.0013 英寸
0.074 毫米
0.0029 英寸
0.05 毫米
0.002 英寸
3.5 米(11.5 英尺) 0.045 毫米
0.0018 英寸
0.02 毫米
0.0008 英寸
0.039 毫米
0.0015 英寸
0.09 毫米
0.0035 英寸
0.062 毫米
0.0024 英寸
4.0 米(13.1 英尺) 0.055 毫米
0.0022 英寸
0.026 毫米
0.001 英寸
0.044 毫米
0.0017 英寸
0.108 毫米
0.0043 英寸
0.076 毫米
0.003 英寸

QuantumM Max

7 轴 SPAT1 PSIZE2 PFORM3 LDIA4 EUNI5
2.0 米(6.6 英尺) 0.023 毫米
0.0009 英寸
0.012 毫米
0.0005 英寸
0.024 毫米
0.0009 英寸
0.045 毫米
0.0018 英寸
0.029 毫米
0.0011 英寸
2.5 米(8.2 英尺) 0.027 毫米
0.0011 英寸
0.013 毫米
0.0005 英寸
0.026 毫米
0.001 英寸
0.049 毫米
0.0019 英寸
0.032 毫米
0.0013 英寸
3.0 米(9.8 英尺) 0.042 毫米
0.0017 英寸
0.02 毫米
0.0008 英寸
0.036 毫米
0.0014 英寸
0.08 毫米
0.0031 英寸
0.054 毫米
0.0021 英寸
3.5 米(11.5 英尺) 0.055 毫米
0.0022 英寸
0.024 毫米
0.0009 英寸
0.043 毫米
0.0017 英寸
0.096 毫米
0.0038 英寸
0.066 毫米
0.0026 英寸
4.0 米(13.1 英尺) 0.065 毫米
0.0026 英寸
0.029 毫米
0.0011 英寸
0.048 毫米
0.0019 英寸
0.118 毫米
0.0046 英寸
0.082 毫米
0.0032 英寸

QuantumE Max

7 轴 SPAT1 PSIZE2 PFORM3 LDIA4 EUNI5
2.0 米(6.6 英尺) 0.028 毫米
0.0011 英寸
0.016 毫米
0.0006 英寸
0.035 毫米
0.0014 英寸
0.05 毫米
0.002 英寸
0.04 毫米
0.0016 英寸
2.5 米(8.2 英尺) 0.035 毫米
0.0014 英寸
0.02 毫米
0.0008 英寸
0.04 毫米
0.0016 英寸
0.055 毫米
0.0022 英寸
0.046 毫米
0.0018 英寸
3.0 米(9.8 英尺) 0.055 毫米
0.0022 英寸
0.028 毫米
0.0011 英寸
0.051 毫米
0.002 英寸
0.088 毫米
0.0035 英寸
0.066 毫米
0.0026 英寸
3.5 米(11.5 英尺) 0.075 毫米
0.003 英寸
0.036 毫米
0.0014 英寸
0.062 毫米
0.0024 英寸
0.11 毫米
0.0043 英寸
0.082 毫米
0.0032 英寸
4.0 米(13.1 英尺) 0.095 毫米
0.0037 英寸
0.044 毫米
0.0017 英寸
0.075 毫米
0.003 英寸
0.136 毫米
0.0054 英寸
0.1 毫米
0.0039 英寸


FaroArm 精度 - 接触式测量*(6 轴)

QuantumS Max

6 轴 SPAT1 PSIZE2 PFORM3 LDIA4 EUNI5
2.0 米(6.6 英尺) 0.016 毫米
0.0006 英寸
0.008 毫米
0.0003 英寸
0.017 毫米
0.0007 英寸
0.03 毫米
0.0012 英寸
0.024 毫米
0.0009 英寸
2.5 米(8.2 英尺) 0.018 毫米
0.0007 英寸
0.009 毫米
0.0004 英寸
0.018 毫米
0.0007 英寸
0.032 毫米
0.0013 英寸
0.026 毫米
0.001 英寸
3.0 米(9.8 英尺) 0.027 毫米
0.0011 英寸
0.012 毫米
0.0005 英寸
0.026 毫米
0.001 英寸
0.046 毫米
0.0018 英寸
0.038 毫米
0.0015 英寸
3.5 米(11.5 英尺) 0.036 毫米
0.0014 英寸
0.016 毫米
0.0006 英寸
0.034 毫米
0.0013 英寸
0.064 毫米
0.0025 英寸
0.052 毫米
0.002 英寸
4.0 米(13.1 英尺) 0.045 毫米
0.0018 英寸
0.02 毫米
0.0008 英寸
0.038 毫米
0.0015 英寸
0.078 毫米
0.0031 英寸
0.063 毫米
0.0025 英寸

QuantumM Max

6 轴 SPAT1 PSIZE2 PFORM3 LDIA4 EUNI5
2.0 米(6.6 英尺) 0.02 毫米
0.0008 英寸
0.01 毫米
0.0004 英寸
0.022 毫米
0.0009 英寸
0.035 毫米
0.0014 英寸
0.027 毫米
0.0011 英寸
2.5 米(8.2 英尺) 0.023 毫米
0.0009 英寸
0.013 毫米
0.0005 英寸
0.023 毫米
0.0009 英寸
0.038 毫米
0.0015 英寸
0.03 毫米
0.0012 英寸
3.0 米(9.8 英尺) 0.034 毫米
0.0013 英寸
0.016 毫米
0.0006 英寸
0.032 毫米
0.0013 英寸
0.052 毫米
0.002 英寸
0.042 毫米
0.0017 英寸
3.5 米(11.5 英尺) 0.044 毫米
0.0017 英寸
0.02 毫米
0.0008 英寸
0.039 毫米
0.0015 英寸
0.068 毫米
0.0027 英寸
0.056 毫米
0.0022 英寸
4.0 米(13.1 英尺) 0.053 毫米
0.0021 英寸
0.024 毫米
0.0009 英寸
0.044 毫米
0.0017 英寸
0.084 毫米
0.0033 英寸
0.067 毫米
0.0026 英寸

All values represent MPE (maximum allowable error)
Contact measurement (FaroArm) : according to ISO 10360-12. Complete system with optional 8-axis (FaroArm + 8-axis), performance based on ISO10360-12 Sphere Position Diameter Error (LDIA)
** Non-contact measurement (ScanArm and ScanArm + 8 axis) : based on ISO 10360-8 Appendix D; Defined as LDIA (Sphere Position Diameter error) - The diameter of a spherical region containing the center of the sphere measured from multiple orientations. Value is absolute value
1 SPAT - Single point joint test
2 EUNI - The distance error between two points, comparing the measured value to the nominal value
3 PSIZE -- The sphere detects the size error and compares the measured value with the nominal value
4 PFORM - Sphere detection form error
5 LDIA -- spherical position diameter error (including the diameter of the spherical region at the center of the sphere measured from multiple orientations)
