Artec Eva
Summary Parameters Video Download

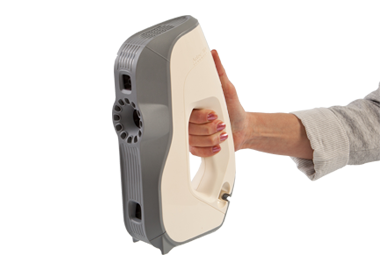

Artec Eva

This structured light 3D scanner is the ideal choice for making a quick, textured and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.


Light, fast and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all round solution for capturing objects of almost any kind, including objects with black and shiny surfaces.

Working principle

                     Push the button                             Scans the object                                Move the scanner

3D archive

Artec handheld scanning with the ordinary scanner compared to the biggest advantage is that she can get the data at the same time the establishment of three-dimensional grid model, and to ensure 0.1mm high-precision three-dimensional data, complex scanning environment it has little impact.


3D measurement

Artec Eva scanned the 3D grid can be carried in the software in the straight line, path, normal, vertical, horizontal distance measurement.


Industry Applications:



                                       Industry                                                        Medical treatment

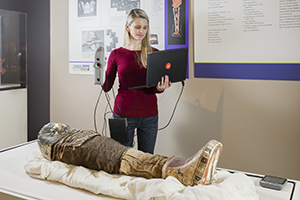

                         Cultural relics protection                                                           movie


Rapid modeling

The scope of work is 0.4m - 1m, data accuracy 0.1mm,You can quickly scan

 the model with the instrument,The device comes with software that quickly

scans the data,Tracking and matching of data,The latest high-end algorithm

so that the speed of 1 times faster than the previous model


Small and compact

Artec Eva weight of 0.85kg, portable batteries, no longer have to worry about

heavy equipment handling,Low weight makes your work easier and more free.


Scan area

Close range scanning, allowing operators to scan the scope of a more intuitive

understanding of the place to avoid duplication,Sweep the embarrassing situation.


Color, art

Eva color is 24BPP, because of its high quality image scanning, so it can be applied

to CG/ animation, live forensics, medicine and other industries.


Artec官网:https://www.artec3d.com

Technical Parameters:


Texture acquisition

3D resolution

3D data accuracy

Relationship between 3D data accuracy and distance

Texture sharpness

colour

Light source

Working distance range

Close scan range HxW

Long scan range HxW

Scanning angle range HхW

Video frame rate

Data acquisition time

Data acquisition speed

Multi-core processor

Size, HxDxW

Weight

Power

Connection interface

Output format

Processing capacity

Requirements for the operating system

Basic computer configuration

Requirements for 3D graphics

calibration

Yes

0.5 mm

0.1 mm

0.15% reduction per 100 cm

1.3 mp

24 bpp

Adjustable flash (not laser)

0.4 – 1 m

214 mm x 148 mm

536 mm x 371 mm

30x21 °

16 fps

0.0002 seconds

2 million points / second

Yes

261.5x158.2x63.7mm

0.85 kg

12V, 40W

1х USB2.0

OBJ, STL, WRML, ASCII, AOP, CSV, PTX

40,000,000 triangles / 1GB RAM

Windows XP – 32-bit, Windows Vista, Windows 7 – 32-bit, 64-bit

Intel® Core ™ 2 duo, 2Gb RAM, NVIDIA GeForce 9000

NVIDIA Quadro or higher

No special equipment required
