激光雷达应用于水库大坝测量

利用三维激光扫描仪快速获取地形信息数据，通过地面控制测量精确拼接各扫描数据，数据采集经初分类处理后可以生产高精度DEM，在激光点云上可以做DLG成图。该扫描系统扫描距离远，做野外地形测绘效率非常高，点云的误差数据在 ± 5 mm。

图：数字线划图（DLG)

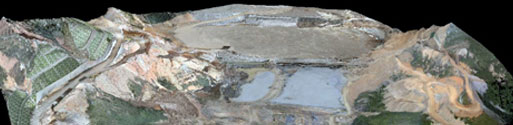

图：电子沙盘图

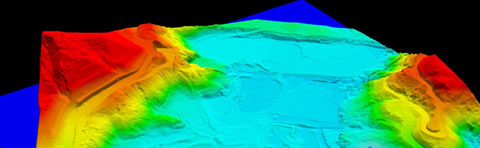

图：数字高程模型（DEM）

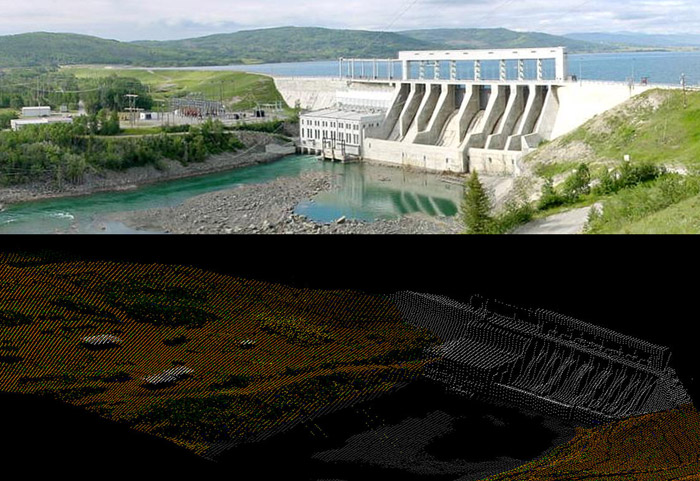

图：大坝实景与点云数据
